Overview
Specification
Place of orgin : Zhejiang China (Mainland) Model Number :XSHG-2UH Gearing Arran.: Harmonic Gear
Rated Power : 0.-7.5 kw Output Torque : 4-950 N m Precision Grade: 0.5 arc min
Packing & Delivery
Packing details : cartons,wooden case
Features :

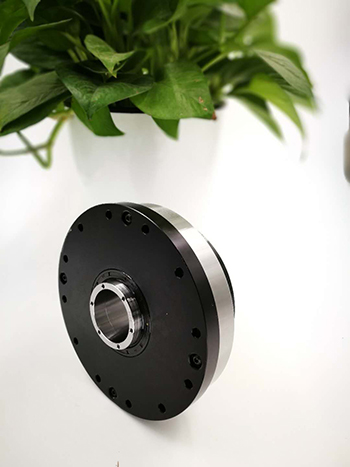

The XSHG-2UH series is a compact hollow shaft gearhead which has zero backlash as well as exceptional accuracy and repeatability,In addition to the hollow shaft, the gearhead also features a high capacity cross roller bearing and output flange to mount the load without the need for additional support bearings
XSHG-2UH is the high torque model of XSHF-2UH that is standard model .
High torque capacity
High rigidity
Backlash-less than 20 arc sec
High positional accuracy and high rotational accuracy
High efficiency
Smoothness of operation
Coaxial input and output.
Model:
XSHG - | 25 - | 100 - | 2UH- |
1 | 2 | 3 | 4 |
1. | Model Name | XSHG series |
2. | Size | 11, 14, 17, 20, 25, 32, 40, 45, 50, 58 |
3. | Gear ratio | 30, 50, 80, 100, 120, 160 |
4. | Model
| 2UH (gearhead) |
Robot: Joint Drive, End Effector
Machine Tool: Tool Changer, 4th and 5th axis
Mobile Robots: Wheel Drive, Robot Arm
List of ratings :
Outline drawing and dimensions:
Position accuracy:
