Overview
Specification
Place of orgin : Zhejiang China (Mainland) Model Number :XSG-2UH Gearing Arran.: Harmonic Gear
Rated Power : 0.-7.5 kw Output Torque : 4-950 N m Precision Grade: 0.5 arc min
Packing & Delivery
Packing details : cartons,wooden case
Features :
XSG-2UH is a high torque housed component gear set combined with a precision cross roller output bearing & flange. It is a very compact, robust and easy to use gearhead solution.
XSG-2UH is the high torque series,XSF-2UH is standard series .
High torque capacity
High rigidity
Backlash-less than 20 arc sec
High positional accuracy and high rotational accuracy
High efficiency
Smoothness of operation
Coaxial input and output.

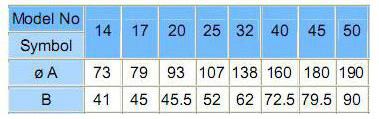

Model:
XSG - | 25 - | 100 - | 2UH |
1 | 2 | 3 | 4 |
1. | Model Name | XSG series |
2. | Size | 11, 14, 17, 20, 25, 32, 40, 45, 50, 58 |
3. | Gear ratio | 30, 50, 80, 100, 120, 160 |
4. | Model
| 2UH (gearhead) |
Robot: Joint Drive, End Effector
Machine Tool: Tool Changer, 4th and 5th axis
Mobile Robots: Wheel Drive, Robot Arm
Position accuracy
